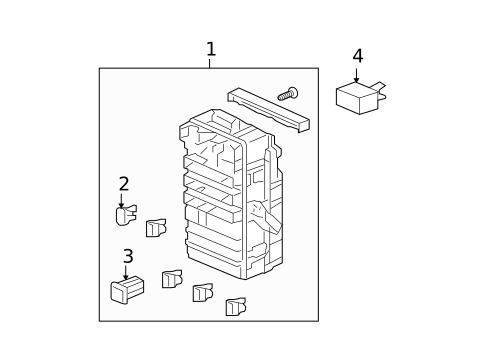

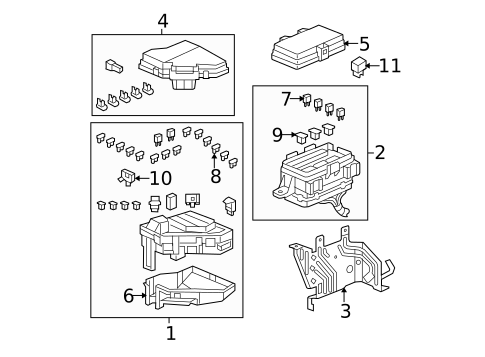

Fuse & Relay for 2015 Honda Pilot
Honda Fuse & Relay Box Mount Bracket, Left
Engine compartment.
Honda Fuse & Relay Box Upper Cover, Right
Engine compartment.
Honda Fuse & Relay Box Upper Cover, Left
Engine compartment.
Honda Fuse & Relay Box Lower Cover, Right
Under hood. Engine compartment.
Honda Fuse
Engine compartment, mini fuse, 10 amp. Under hood, 10 amp. Instrument panel, 10 amp. In cabin, 10 amp.
Honda Fuse
In cabin, 30 amp. Engine compartment, mini fuse, 30 amp. Under hood, 30 amp.
Honda Fuse
In cabin, 15 amp. Engine compartment, mini fuse, 15 amp. Under hood, 15 amp. Instrument panel, 15 amp.
Honda Odyssey. Cabin. Hatchback, engine compartment, mitsuba. Starter Cut. Hatchback, instrument panel compartment. With hydrogen, engine compartment, mitsuba.
Honda Fuse
Instrument panel compartment, 30a. Cabin compartment, block fuse, 30 amp. Cabin compartment, 30a. Cabin, 2011-15, 30a. Under hood, 30 amp. Engine compartment. 30 amp. Cabin, 2016, 30a. Instrument panel. 30 amp.
